iMAG-DMC: Magnetometer for UAV, Aviation and Defense with EASA Form 1

3D Magnetometer for Harsh Environment

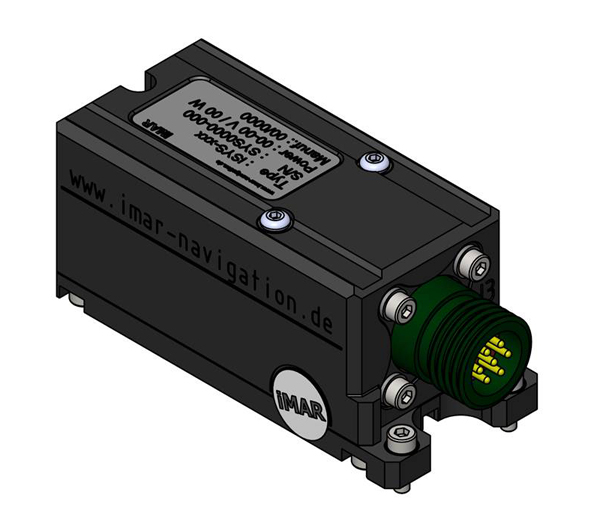

iMAG-DMC-LS is a three axes magnetometer being designed to be used on helicopters and in other harsh environment. The sensor can be calibrated in hard-magnetic and soft-magnetic environment and deliveres magnetic north with high bandwidth.

  • 3 D magnetometer
  • azimuth accuracy 0.5 deg (2 sigma)
  • up to +/-45 deg roll/pitch capability
  • up to 50 Hz data rate
  • RS232 / RS422 interfaces
  • direct supported by iVRU-xxx IMUs without need of external power supply

The iMAG-DMC provides an interface for plug&play operation with iMAR’s vertical reference units of type iVRU-xx, iNAV and iNAT.

The dedicated version iMAG-DMC-A (P/N A0210-00001-0021) is approved for aviation applications according to EASA Part 21G and is part of our Capability List (DE.21G.0254; Part Type D128-07.01). It can be delivered with EASA FORM 1 certificate.

Further information

Datasheet: iMR-DMC-LS 3D Magnetometer for general applications
Datasheet iMAG-DMC-A: 3D Magnetometer with EASA Form 1 for aviation applications

More manuals, user reports and other information in our download area.
